Customize Fully Automatic Wire Processing And Housing Insertion Machines

SDC–910

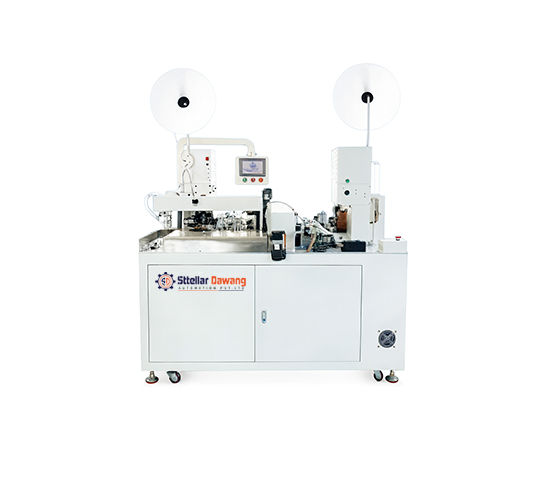

FULLY AUTOMATIC RIBBON CABLE CUTTING, STRIPPING, TERMINAL CRIMPING & ONE-SIDE HOUSING INSERTION MACHINE

FULLY AUTOMATIC RIBBON CABLE CUTTING, STRIPPING, TERMINAL CRIMPING & ONE-SIDE HOUSING INSERTION MACHINE

SDC–910 is a dedicated automation equipment designed specially for ribbon cables, enabling precision cutting, two-end crimping and housing insertion in one continuous automatic operation. It improves production consistency and reduces manual handling, ideal for flat/FFC type wire harness production

Specialised for ribbon cable harness processing
One machine completes cut + strip + crimp + housing insertion
High precision servo feeding ensures accurate length control
Supports housing up to 45 mm width

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	SDC–910
Machine Type	Automatic Ribbon Cable Terminal Crimping & Housing Insertion Machine
Application Field	Automatic cutting, stripping, crimping, and one-side housing insertion for ribbon cables
Applicable Housing Size	Up to 45 mm width
Cutting Length Range	75 – 1500 mm
Cutting Resolution	0.5 mm + Cutting Length × 0.2%
Crimping Force	2 Ton
Control Interface	Touchscreen HMI (English)
Control System	Full Servo Motion Control
Power Supply	AC 220V ±10%, 50/60 Hz, 20A
Air Pressure Requirement	0.5 – 0.7 MPa (dry, clean compressed air)
Machine Dimensions (L×W×H)	1900 × 800 × 1860 mm
Optional Functions	CCD vision inspection, inkjet coding, NG sorting
Safety Features	Protective enclosure, emergency stop, overload protection

Model

Model 1 SDC–910

Machine Type

Model 1 Automatic Ribbon Cable Terminal Crimping & Housing Insertion Machine

Application Field

Model 1 Automatic cutting, stripping, crimping, and one-side housing insertion for ribbon cables

Applicable Housing Size

Model 1 Up to 45 mm width

Cutting Length Range

Model 1 75 – 1500 mm

Cutting Resolution

Model 1 0.5 mm + Cutting Length × 0.2%

Crimping Force

Model 1 2 Ton

Control Interface

Model 1 Touchscreen HMI (English)

Control System

Model 1 Full Servo Motion Control

Power Supply

Model 1 AC 220V ±10%, 50/60 Hz, 20A

Air Pressure Requirement

Model 1 0.5 – 0.7 MPa (dry, clean compressed air)

Machine Dimensions (L×W×H)

Model 1 1900 × 800 × 1860 mm

Optional Functions

Model 1 CCD vision inspection, inkjet coding, NG sorting

Safety Features

Model 1 Protective enclosure, emergency stop, overload protection

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
