Customize Fully Automatic Wire Processing And Housing Insertion Machines

SDC-4100

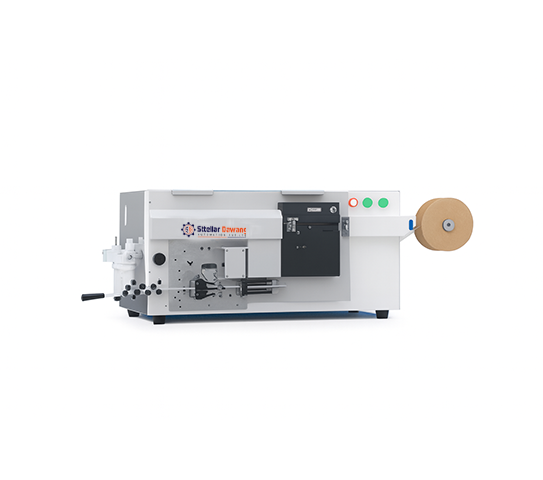

FULLY AUTOMATIC WIRE CUTTING, CODING, TUBE THREADING AND WIRE STRIPPING IN ONE INTEGRATED SYSTEM.

FULLY AUTOMATIC WIRE CUTTING, CODING, TUBE THREADING AND WIRE STRIPPING IN ONE INTEGRATED SYSTEM.

The SDC-4100 is designed for fully automatic coding, tube threading and wire stripping in one integrated system.It supports wire size from 0.5–6.0BVR with automatic wire diameter adaptation without manual adjustment.Tube heating is built-in to guarantee smooth code printing and prevent tube freezing.

High Efficiency: Up to 600 ± pcs/hour processing speed
Double-Head Printing: Simultaneous printing for higher
3-in-1 Automation: Coding, tube threading, and stripping
Adaptive Wire Size: Automatically adjusts to different wire

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	SDC4100
Function	Coding, threading, stripping
Wire Size	0.5 – 6.0 BVR
Processing Speed	600 ± pcs/hour
Cutting Length	70 – 9999 mm
Stripping Length	5 – 20 mm
Control	PC + USB port
Inspection	Tube / wire run-out detection
Power Supply	AC220V 50–60Hz
Air Pressure	0.4 MPa – 0.6 MPa (Air volume 130–180 L/min)
Tube Length	15 – 35 mm programmable
Heating Type	Tube heating
Printing	Double-head printing at once
Tube Direction	Vertical / Opposite selectable
Coding	Code position adjustable
Other Function	Adaptive to wire size automatically
Consumables	Ribbon, tube, cutter
Machine Dimension (L×W×H)	860 × 390 × 400 mm
Working Temperature	5°C – 35°C
Warranty	1 year (quick-wear parts excluded)
Range	Machine + software (lifetime upgrading)

Model

Model 1 SDC4100

Function

Model 1 Coding, threading, stripping

Wire Size

Model 1 0.5 – 6.0 BVR

Processing Speed

Model 1 600 ± pcs/hour

Cutting Length

Model 1 70 – 9999 mm

Stripping Length

Model 1 5 – 20 mm

Control

Model 1 PC + USB port

Inspection

Model 1 Tube / wire run-out detection

Power Supply

Model 1 AC220V 50–60Hz

Air Pressure

Model 1 0.4 MPa – 0.6 MPa (Air volume 130–180 L/min)

Tube Length

Model 1 15 – 35 mm programmable

Heating Type

Model 1 Tube heating

Printing

Model 1 Double-head printing at once

Tube Direction

Model 1 Vertical / Opposite selectable

Coding

Model 1 Code position adjustable

Other Function

Model 1 Adaptive to wire size automatically

Consumables

Model 1 Ribbon, tube, cutter

Machine Dimension (L×W×H)

Model 1 860 × 390 × 400 mm

Working Temperature

Model 1 5°C – 35°C

Warranty

Model 1 1 year (quick-wear parts excluded)

Range

Model 1 Machine + software (lifetime upgrading)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
