Customize Fully Automatic Wire Processing And Housing Insertion Machines

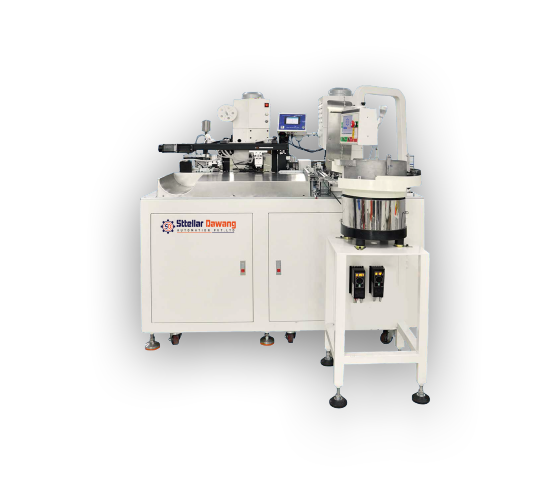

SDC-086C
FULLY AUTOMATIC TWO TO EIGHT MULTI-COLOUR WIRE CUTTING, STRIPPING, BOTH-END CRIMPING AND ONE-SIDE HOUSING INSERTION & SECOND SIDE SLEEVE JACKET THREADING MACHINE
The SDC–086C is an advanced automation equipment designed for single cable processing that includes sleeve jacket threading and plastic housing insertion after terminal crimping. It offers high precision cutting and fully automated end-to-end processing, ideal for medium-high volume harness production.
Integrated jacket threading + crimping + housing insertion
Supports up to 8-color wire applications
High accuracy servo-controlled wire feeding and cutting
Touchscreen interface for fast parameter setup
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–086C
Machine Type
Model 1 Automatic Jacket Threading + Terminal Crimping + Housing Insertion Machine
Production Rate
Model 1 Approx. 30 pcs/min
Application Field
Model 1 For up to 8-color wires: cutting, stripping, crimping, jacket threading, and housing insertion
Applicable Cable Specification
Model 1 0.3 – 2.5 mm² (AWG24 – AWG12)
Cutting Length Range
Model 1 75 – 9999 mm
Cutting Resolution
Model 1 ≤500 mm: 0.5 mm + Cutting Length × 0.2%; ≤1000 mm: 1.0 mm + Cutting Length × 0.2%
Crimping Force
Model 1 2 Ton
Control Interface
Model 1 Touchscreen HMI (English)
Control System
Model 1 Full Servo Motion Control
Power Supply
Model 1 AC 220V ±10%, 50/60 Hz, 20A
Air Pressure Requirement
Model 1 0.5 – 0.7 MPa (dry, clean compressed air)
Machine Dimensions (L×W×H)
Model 1 1500 × 800 × 1860 mm
Optional Functions
Model 1 CCD inspection, inkjet printing, NG sorting
Safety Features
Model 1 Emergency stop, overload guard, protective enclosure
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
