Customize Fully Automatic Wire Processing And Housing Insertion Machines

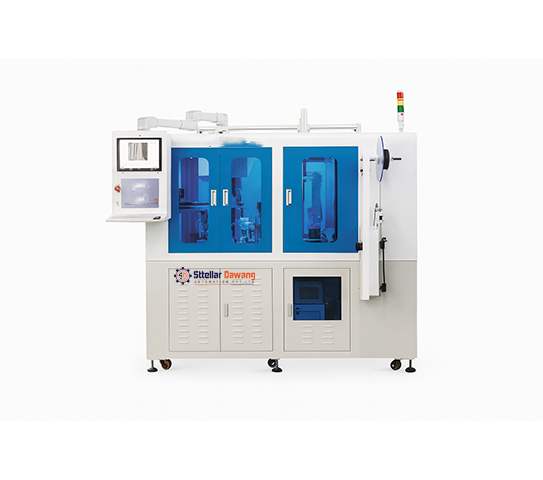

SDC-082A
FULLY AUTOMATIC COAXIAL CABLE CUTTING, STRIPPING, CRIMPING & TINNING MACHINE
The SDC-082A is a specialised automation system designed for precision coaxial cable processing. This machine completes fine stripping, accurate cutting length control, precise terminal crimping and optional end tinning in one continuous process.
Suitable for ultra-small OD coaxial cable 1.13–1.37mm
High precision stripping ensures stable RF signal integrity
One machine completes: cut strip crimp tin (optional)
Servo control for high repeatability and length accuracy
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC-082A
Machine Type
Model 1 Automatic Coaxial Cable Cutting, Stripping, Crimping & Tinning
Application Field
Model 1 For producing coaxial cable (Ø1.13–1.37mm), crimping terminals at both ends, or one-end crimping
Applicable Cable Diameter
Model 1 Outer Diameter 1.13mm – 1.37mm
Cutting Length Range
Model 1 40mm – 600mm
Power Supply
Model 1 AC 220V / 50Hz
Rated Power
Model 1 5 kW
Crimping Force
Model 1 0.4 Ton
Control Interface
Model 1 Touch Screen HMI English
Control System
Model 1 Servo Motion Control
Air Supply Requirement
Model 1 0.5 – 0.7 MPa
Machine Dimensions (L×W×H)
Model 1 2000 × 1500 × 2000 mm
Optional Functions
Model 1 CCD vision inspection, auto solder tin-control, NG sorting
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

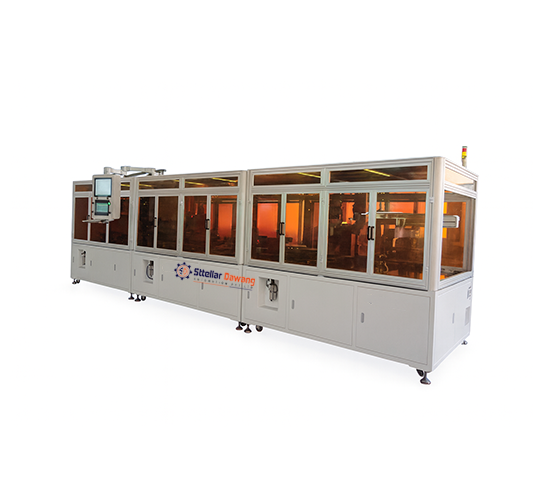

SDC-6600 Customize Fully Automatic Wire Processing And Housing Insertion Machines
