Customize Fully Automatic Wire Processing And Housing Insertion Machines

SDC-081HC

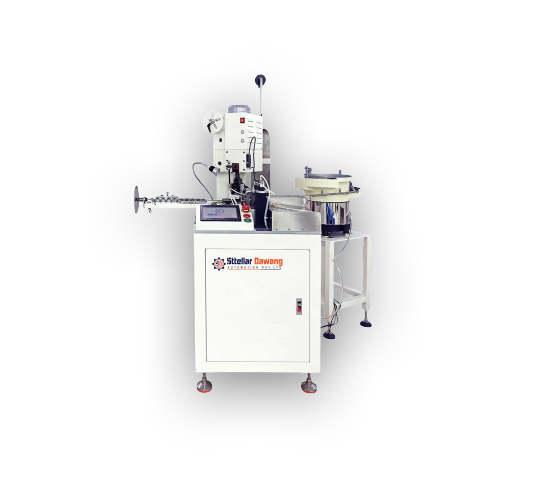

FULLY AUTOMATIC WIRE CUTTING, STRIPPING AND ONE SIDE CRIMPING,INSULATION JACKET INSERTION & SECOND SIDE TIN-DIPPING MACHINE

FULLY AUTOMATIC WIRE CUTTING, STRIPPING AND ONE SIDE CRIMPING,INSULATION JACKET INSERTION & SECOND SIDE TIN-DIPPING MACHINE

SDC–081HC is a multifunctional high-precision automation system designed to perform crimping and insulation sleeve insertion on one end and tin-dipping on the opposite end in one integrated process. Suitable for automotive harnesses,

One machine completes crimping + silicon cap insertion + solder tinning
Servo precision feeding ensures consistent length accuracy
High efficiency production up to 2400 pcs/hour
Suitable for multiple wire materials (PVC / Teflon / Silicone)

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	SDC–081HC
Production Rate	Approx. 2,400 pcs/hour
Application Field	Cutting, stripping, crimping, sleeve insertion & tin-dipping at opposite end
Applicable Cable Specification	0.25 – 2.50 mm² (AWG24# – AWG12#)
Cable Outer Diameter Range	Φ1.6 mm – Φ3.6 mm
Cutting Length Range	80 mm – 3000 mm
Cutting Resolution	≤500 mm: 0.5 mm + Cutting Length ±0.2 mm; ≤1000 mm: 1.0 mm + Cutting Length ±0.2%
Crimping Force	2 Ton
Control Interface	Touchscreen HMI (English)
Control System	Fully Automatic Servo Feeding
Power Supply	AC 220V ±10%, 50/60 Hz, 20 A
Air Supply	0.5 – 0.7 MPa (clean, dry air)
Machine Dimensions (L×W×H)	965 × 835 × 1860 mm
Optional Functions	CCD visual inspection, Inkjet coding, NG sorting
Safety Features	Emergency stop, overload protection, protective enclosure

Model

Model 1 SDC–081HC

Production Rate

Model 1 Approx. 2,400 pcs/hour

Application Field

Model 1 Cutting, stripping, crimping, sleeve insertion & tin-dipping at opposite end

Applicable Cable Specification

Model 1 0.25 – 2.50 mm² (AWG24# – AWG12#)

Cable Outer Diameter Range

Model 1 Φ1.6 mm – Φ3.6 mm

Cutting Length Range

Model 1 80 mm – 3000 mm

Cutting Resolution

Model 1 ≤500 mm: 0.5 mm + Cutting Length ±0.2 mm; ≤1000 mm: 1.0 mm + Cutting Length ±0.2%

Crimping Force

Model 1 2 Ton

Control Interface

Model 1 Touchscreen HMI (English)

Control System

Model 1 Fully Automatic Servo Feeding

Power Supply

Model 1 AC 220V ±10%, 50/60 Hz, 20 A

Air Supply

Model 1 0.5 – 0.7 MPa (clean, dry air)

Machine Dimensions (L×W×H)

Model 1 965 × 835 × 1860 mm

Optional Functions

Model 1 CCD visual inspection, Inkjet coding, NG sorting

Safety Features

Model 1 Emergency stop, overload protection, protective enclosure

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding
