Customize Fully Automatic Wire Processing And Housing Insertion Machines
SDC-069

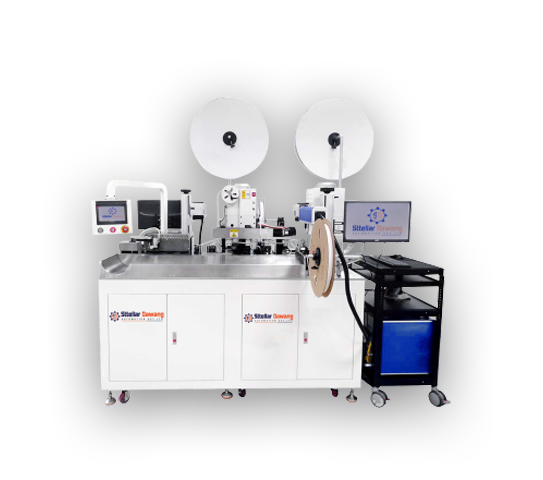

FULLY AUTOMATIC WIRE CUTTING AND BOTH SIDE CRIMPING AND TUBE INSERTING & SHRINKING MACHINE
The SDC–069 is a fully automatic wire processing system that performs cutting, stripping, number tube threading, marking, and terminal crimping on both ends with high accuracy.
Fully automatic dual-end crimping and tube insertion
Handles wire sizes from 0.3–2.5 mm² (AWG24#–AWG12#)
Servo-driven system for precise feeding
cutting Integrated detection for missing wire, tube
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–069
Production Rate
Model 1 Up to 1,500 pcs/hour
Application Field
Model 1 Cutting wires at both ends, stripping insulation, threading number tubes, crimping
Applicable Wire Size
Model 1 0.3 – 2.5 mm² (AWG24# – AWG12#)
Cutting Length
Model 1 75 – 9999 mm
Cutting Resolution
Model 1 Within 500 mm: 0.5 mm + (Cutting Length × 0.2%), Within 1000 mm: Cutting Length × 0.2%
Stripping Length
Model 1 Adjustable (Front/Rear) 0.1 – 20 mm
Crimping Force
Model 1 2 Ton
Feeding Type
Model 1 Servo-controlled precision wire feeding
Drive System
Model 1 Full Servo Motor Control
Tube Insertion Function
Model 1 Automatic number tube threading and marking
Terminal Crimping
Model 1 Compatible with various open-barrel and insulated terminals
Wire Detection
Model 1 Missing wire / terminal / tube detection with automatic alarm
Control Interface
Model 1 Touch Screen English
Operation Mode
Model 1 Fully Automatic
Power Supply
Model 1 AC 220V ±10%, 50/60Hz, 20A
Air Pressure
Model 1 0.5 – 0.7 MPa (Clean, dry compressed air)
Power Consumption
Model 1 Approx. 2.5 kW
Noise Level
Model 1 ≤ 70 dB
Machine Dimensions (L×W×H)
Model 1 2450 × 800 × 1860 mm
Net Weight
Model 1 Approx. 380 kg
Optional Functions
Model 1 Inkjet printing, wire color recognition, CCD inspection system
Safety Features
Model 1 Emergency stop, protective enclosure, overload protection
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
