Customize Fully Automatic Wire Processing And Housing Insertion Machines
SDC-067

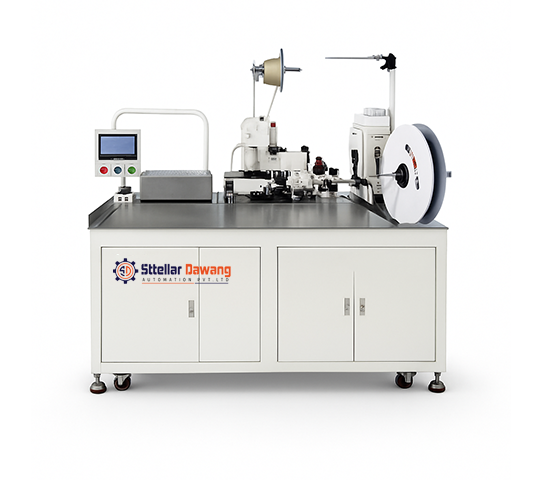

FULLY AUTOMATIC WIRE CUTTING, BOTH SIDE CRIMPING AND TUBE INSERTING & SHRINKING MACHINE
The SDC–067 is a fully automatic terminal crimping and number tube inserting machine integrating cutting, stripping, twisting, tube threading, and crimping functions.
Fully automatic dual-end crimping and tube insertion
Servo-controlled high-precision feeding and cutting
Bilingual touch screen for easy operationServo
Built-in error detection and alarm system
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–067
Production Rate
Model 1 Up to 3,500 pcs/hour
Application Field
Model 1 Cutting, stripping, twisting, tube threading, and both-side terminal crimping
Applicable Wire Size
Model 1 0.05 – 0.75 mm² (AWG30# – AWG18#)
Cutting Length
Model 1 30 – 9999 mm
Cutting Resolution
Model 1 0.5 mm + (Cutting Length × 0.2%)
Stripping Length
Model 1 Adjustable 0.1 – 20 mm (Front/Rear)
Crimping Force
Model 1 2 Ton
Feeding Type
Model 1 Servo-controlled precision wire feeding
Drive System
Model 1 Full Servo Motor Control
Twisting Function
Model 1 Automatic multi-core twisting supported
Tube Insertion Function
Model 1 Automatic number tube threading on both ends
Terminal Crimping
Model 1 Supports open-barrel and insulated terminals
Wire Detection
Model 1 Missing wire/terminal/tube detection with alarm
Control Interface
Model 1 Touch Screen (English)
Operation Mode
Model 1 Fully Automatic
Power Supply
Model 1 AC 220V ±10%, 50/60Hz, 20A
Air Pressure
Model 1 0.5 – 0.7 MPa
Power Consumption
Model 1 Approx. 2.0 kW
Noise Level
Model 1 ≤ 70 dB
Machine Dimensions (L×W×H)
Model 1 835 × 765 × 1860 mm
Net Weight
Model 1 Approx. 300 kg
Optional Functions
Model 1 Inkjet printing, wire color recognition, CCD inspection system
Safety Features
Model 1 Emergency stop, protective enclosure, overload protection
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
