Customize Fully Automatic Wire Processing And Housing Insertion Machines

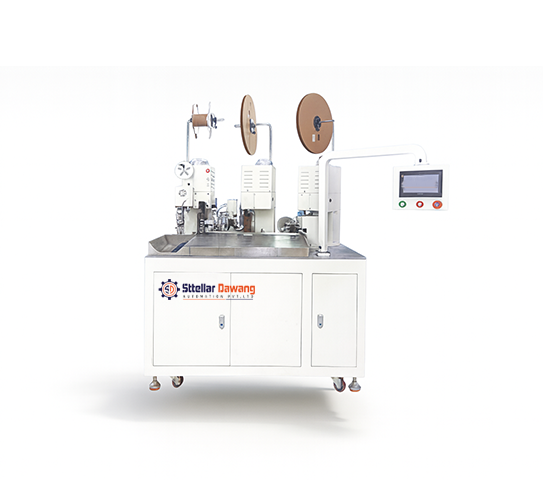

SDC-038HS
FULLY AUTOMATIC FOUR-WIRE CUTTING, STRIPPING, ONE SIDE FOUR-WIRE COMBINED CRIMPING AND SECOND SIDE SINGLE WIRE CRIMPING AND THIRD SIDE SINGLE CRIMPING MACHINE
SDC–038HS is a specialized fully automatic processing machine engineered to handle four wires simultaneously in one cycle. The system automatically completes cutting, stripping and terminal crimping with highconsistency
Handles 4 wires at a time for higher output efficiency
Servo controlled feeding ensures high precision & stable consistency
Touchscreen HMI for quick parameter setting & program changeover
Long cutting length capability up to 9999 mm
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–038HS
Production Rate
Model 1 Approx. 1,400 pcs/hour
Application Field
Model 1 Multi-wire cutting, stripping, and crimping as per product schematic
Cable Size Range
Model 1 0.25 – 1.50 mm² (AWG24# – AWG12#)
Cutting Length Range
Model 1 65 – 9999 mm (for >800 mm: additional wire feeding device required)
Cutting Resolution
Model 1 0.5 mm + (Cutting Length × 0.5%)
Crimping Force
Model 1 2 Ton
Control Interface
Model 1 Touch Screen HMI (English)
Control System
Model 1 Fully Automatic / Servo Based Feeding
Power Supply
Model 1 AC 220V, 50/60 Hz, 20A
Air Supply
Model 1 0.5 – 0.7 MPa (clean & dry)
Supported Materials
Model 1 PVC, Teflon, Silicone insulated wires
Machine Dimensions (L×W×H)
Model 1 1450 × 750 × 1860 mm
Optional Functions
Model 1 CCD camera inspection, Inkjet coding, NG wire reject sorting
Safety Features
Model 1 Emergency stop, safety shield protection
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
