Customize Fully Automatic Wire Processing And Housing Insertion Machines

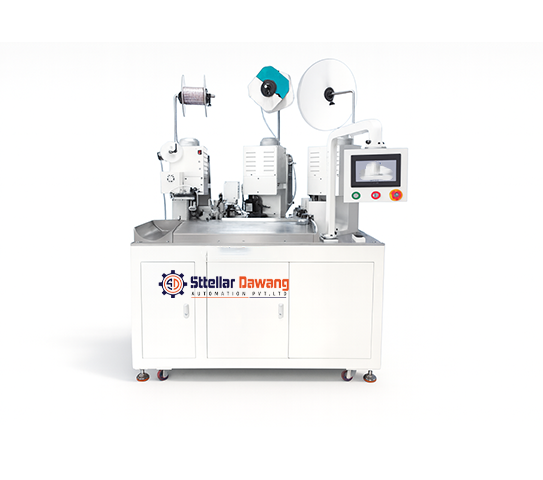

SDC-038H
FULLY AUTOMATIC TWO-WIRE CUTTING, STRIPPING, ONE SIDE DOUBLE WIRE CRIMPING AND SECOND SIDE SINGLE WIRE CRIMPING AND THIRD SIDE SINGLE CRIMPING MACHINE
The SDC–038H is designed for medium-to-high length wire processing with automatic cutting, stripping and terminal crimping in one integrated system.
Supports long wire processing up to 9999 mm length
Servo driven wire feeding for stable & precise operations
Touch screen control interface for quick parameter setup
High productivity up to 3,000 pcs/hr with consistent quality
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–038H
Production Rate
Model 1 Up to 3,000 pcs/hour
Application
Model 1 As per product schematic diagram (terminal crimping application)
Cable Size Range
Model 1 0.25 – 1.50 mm² (AWG24# – AWG12#)
Cutting Length Range
Model 1 65 – 9999 mm (supports long lengths >800 mm)
Cutting Resolution
Model 1 0.5 mm + (Cutting Length × 0.5%)
Crimping Force
Model 1 2 Ton
Feeding System
Model 1 Servo controlled precision wire feeding
Drive System
Model 1 Full Servo Motor Control
Control Interface
Model 1 Touch Screen HMI English
Operation Mode
Model 1 Fully Automatic
Power Supply
Model 1 AC220V ±10%, 50/60Hz, 20A
Air Pressure
Model 1 0.5 – 0.7 MPa (clean & dry)
Machine Dimensions (L×W×H)
Model 1 1450 × 750 × 1860 mm
Optional Functions
Model 1 Inkjet coding, CCD visual inspection, defective piece reject sorting
Safety Features
Model 1 Emergency stop, overload protection, sliding guard protection
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
