Customize Fully Automatic Wire Processing And Housing Insertion Machines

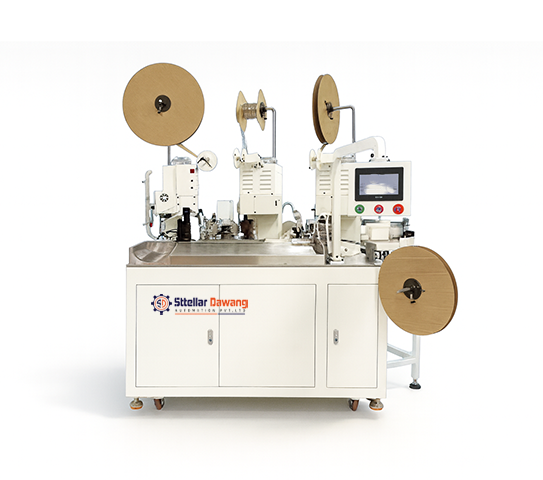

SDC-038C
FULLY AUTOMATIC TWO-WIRE CUTTING, STRIPPING, ONE SIDE TWO-WIRE COMBINED CRIMPING AND SECOND SIDE SINGLE WIRE CRIMPING AND SILICON CAP INSERTING MACHINE
SDC–038C is specifically designed to process two wires simultaneously in a single cycle with automatic cutting, stripping, and terminal crimping functions. Ideal for medium to high volume harness production where consistency.
Two-wire synchronized feeding & combined crimping operation
Servo controlled wire feeding ensures precise cutting length accuracy
Supports ultra-long wire processing up to 9999 mm
User-friendly touchscreen interface for fast setup and job changeover
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–038HC
Machine Type
Model 1 Automatic Two-Wire Combined Crimping Machine
Production Rate
Model 1 Approx. 1,500 pcs/hour
Application Field
Model 1 Two-wire combined crimping as per product schematic
Cable Size Range
Model 1 0.25 – 4.0 mm² (AWG24# – AWG12#)
Cutting Length Range
Model 1 65 – 9999 mm (for >800 mm, wire feeding device required)
Cutting Resolution
Model 1 0.5 mm + Cutting Length ± 0.5%
Crimping Force
Model 1 2 Ton
Control Interface
Model 1 Touch Screen HMI (English)
Control System
Model 1 Fully Automatic Servo Feeding
Power Supply
Model 1 AC 220V, 50/60 Hz, 20 A
Air Supply
Model 1 0.5 – 0.7 MPa (clean & dry)
Applicable Wire Insulation
Model 1 PVC, Silicone, Teflon
Machine Dimensions (L×W×H)
Model 1 1450 × 750 × 860 mm
Optional Functions
Model 1 CCD inspection, inkjet tube printing, NG wire sorting
Safety Features
Model 1 Emergency stop button, full safety cover
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
