SDC-038

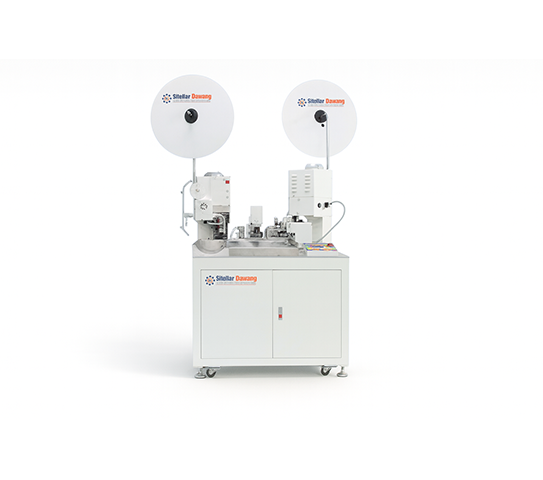

FULLY AUTOMATIC TWO-WIRE CUTTING, STRIPPING, ONE SIDE DOUBLE WIRE CRIMPING AND SECOND SIDE SINGLE WIRE CRIMPING MACHINE
The SDC–038 is a compact, high-accuracy automatic terminal crimping machine for medium and large harness production lines. It integrates wire feeding, cutting, stripping and terminal crimping into a continuous automatic process.
Up to 3,000 pieces/hour stable output
High precision cutting with 0.1 mm resolution & ±0.5% accuracy
Full servo drive ensures consistent feed and crimp quality
Touch screen HMI with bilingual interface for fast setup
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SDC–038
Production Rate
Model 1 Up to 3,000 pcs/hour
Application
Model 1 Cutting, stripping, and terminal crimping (as per product schematic)
Applicable Wire Size
Model 1 0.3 – 2.5 mm² (AWG24# – AWG12#)
Cutting Length Range
Model 1 65 – 9999 mm
Cutting Resolution
Model 1 0.1 mm
Length Accuracy
Model 1 Cutting Length ± 0.5%
Crimping Force
Model 1 2 Ton
Feeding System
Model 1 Servo controlled precision wire feeding
Drive System
Model 1 Full Servo Motor Control
Control Interface
Model 1 Touch Screen HMI (English)
Operation Mode
Model 1 Fully Automatic
Power Supply
Model 1 AC 220V ±10%, 50/60Hz, 20A
Air Pressure
Model 1 0.5 – 0.7 MPa (clean & dry)
Power Consumption
Model 1 Approx. 2.0 kW
Machine Dimensions (L×W×H)
Model 1 1000 × 750 × 1860 mm
Net Weight
Model 1 Approx. 280 kg
Optional Functions
Model 1 Inkjet printing, CCD inspection, bad-piece reject
Safety Features
Model 1 Overload protection, emergency stop, protective cover
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
