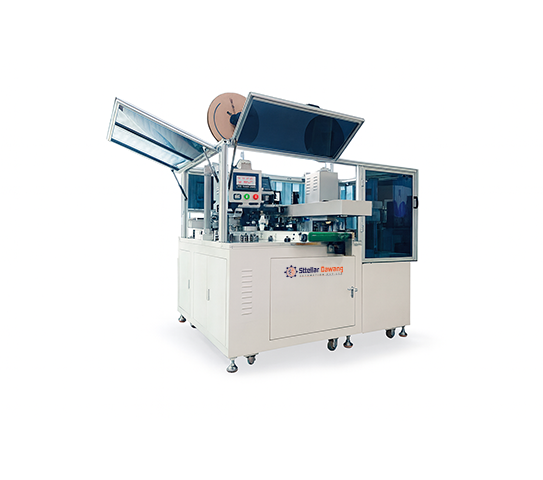

Customize Fully Automatic Wire Processing And Housing Insertion Machines

SD-WCW Plus

WATERPROOF WIRE SEAL TRANSMISSION WORKSTATION

WATERPROOF WIRE SEAL TRANSMISSION WORKSTATION

WHX Waterproof Cover Transmission Workstation is designed for automated feeding and preparation of waterproof plugs / seals for wire harness assembly. By combining vibrating feeding, track guidance, optical sensing and end expansion, it ensures stable and oriented supply of waterproof covers to downstream crimping or insertion machines.

Vibratory bowl feeding ensures continuous and stable supply
Track maintains correct product direction and posture
Intelligent sensing system avoids jamming or empty-feeding
Expansion module pre-flares seals to reduce insertion resistance

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Technical Specifications

Specifications	Details
Model	SD-WCW Plus
Functional Modules	Vibrating Plate, Track Body, Sensor, Expansion Sleeve
Vibrating Plate Function	Generates vibration force to move waterproof covers forward automatically
Track Body Function	Transports and screens material while maintaining correct product orientation
Sensor Function	Monitors product flow and detects blockages during transmission
Expansion Sleeve Function	Expands one end of the waterproof plug for easier cable insertion
Application Field	Waterproof plug alignment, posture correction, expansion, and feeding into production line
Structure Integration	Table-top or line-integration module; customizable per production requirements
Compatibility	Compatible with all standard automotive/industrial waterproof sheath types

Model

Model 1 SD-WCW Plus

Functional Modules

Model 1 Vibrating Plate, Track Body, Sensor, Expansion Sleeve

Vibrating Plate Function

Model 1 Generates vibration force to move waterproof covers forward automatically

Track Body Function

Model 1 Transports and screens material while maintaining correct product orientation

Sensor Function

Model 1 Monitors product flow and detects blockages during transmission

Expansion Sleeve Function

Model 1 Expands one end of the waterproof plug for easier cable insertion

Application Field

Model 1 Waterproof plug alignment, posture correction, expansion, and feeding into production line

Structure Integration

Model 1 Table-top or line-integration module; customizable per production requirements

Compatibility

Model 1 Compatible with all standard automotive/industrial waterproof sheath types

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
