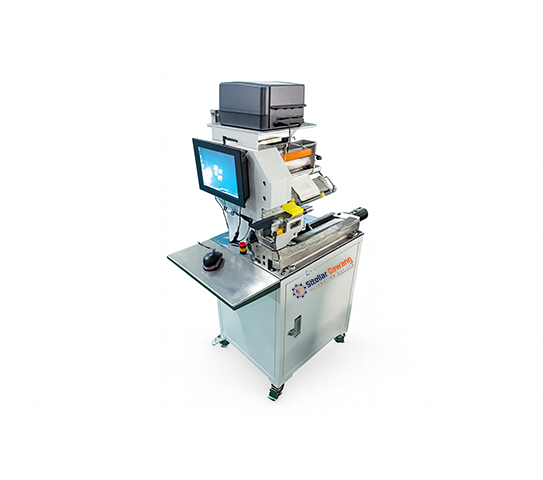

LabelMaster-45 Plus
HIGH PRECISION SERVO MOTOR LABEL PRINTER AND WIRE LABELING SYSTEM MACHINE
The LabelMaster-45 Plus is a professional semi-automatic wrap-around labeling system designed for cylindrical products such as round cables, tubes, soft pipes and small industrial components. It delivers high speed and high accuracy label positioning, making it suitable for mass production, QC labeling, and cable/harness identification in manufacturing
Suitable for round wires, cable sleeves, tubes & cylindrical products
High precision wrap label application with ±0.1mm accuracy
Adjustable label width & length with option for custom oversized labels
Compact, robust structure suitable for production floors
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 LabelMaster-45 Plus
Applicable Material Types
Model 1 Round cables, tubes & similar cylindrical materials
Supported Outer Diameter
Model 1 Ø1.6 – Ø30mm (customizable for other sizes)
Available Label Width
Model 1 5 – 45mm (custom oversized available)
Available Label Length
Model 1 40 – 180mm (custom oversized available)
Max. Label Roll Outer Diameter
Model 1 240mm
Label Roll Inner Core Diameter
Model 1 76mm
Labeling Accuracy
Model 1 ± 0.1mm
Labeling Speed
Model 1 1500 – 2500 pcs/hour (depends on product size & operator speed)
Air Connection Required
Model 1 0.4 – 0.6 MPa
Power Supply
Model 1 220V/50Hz or 110V/60Hz
Machine Power
Model 1 250W
Machine Dimensions (L×W×H)
Model 1 580 × 680 × 1000 mm
Net Weight
Model 1 86 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

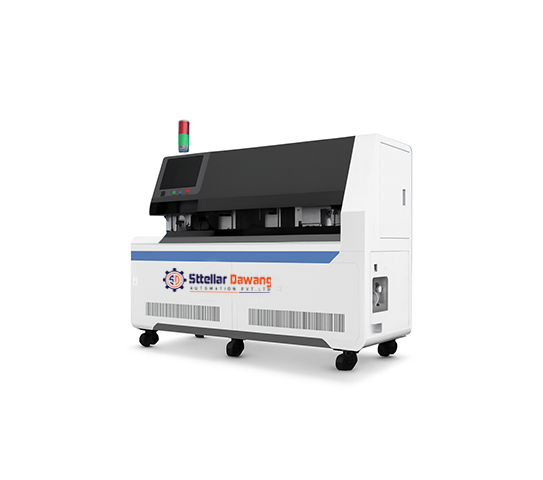

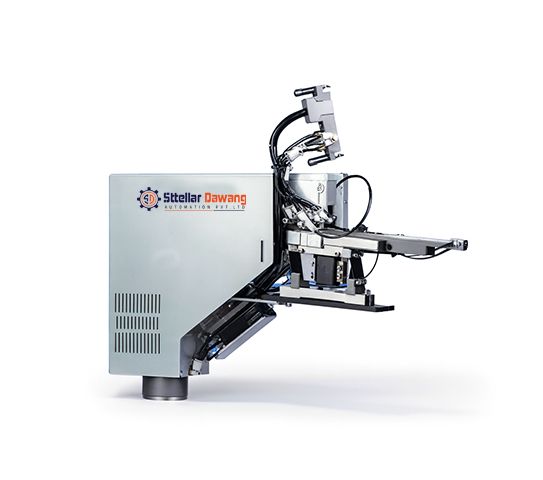

SD-WCW Customize Fully Automatic Wire Processing And Housing Insertion Machines

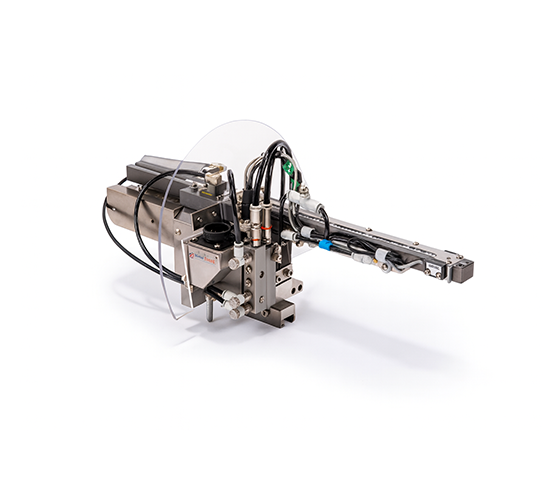

SD-WCW Puls Customize Fully Automatic Wire Processing And Housing Insertion Machines
