Crimping Machines
ServoCrimp-40000
40 TON CRIMPING MACHINE (SERVO PRESS)
The Model-ServoCrimp-40000 is a high-precision 40-ton servo-driven terminal crimping machine designed for large cable processing. It delivers exceptional accuracy, stability, and efficiency, making it ideal for heavy-duty industrial crimping applications.
40-ton crimping force with adjustable stroke (35–60 mm) , Servo-driven system with ±0.05 mm crimping accuracy, Handles cable sizes from 6 mm² to 180 mm² with speeds up to 30 pcs/mi.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 ServoCrimp-40000
Machine Type
Model 1 High Precision 40-Ton Servo Terminal Crimping Machine
Cable Range
Model 1 Min: 6 mm², Max: 180 mm²
Crimping Force
Model 1 40 Ton
Stroke
Model 1 35 / 40 / 55 / 60 mm
Shut Height
Model 1 160 / 190 / 212 mm
Crimping Accuracy
Model 1 ±0.05 mm
Speed
Model 1 10–30 pcs/min
Control System
Model 1 Motion Control Board + Touch Screen
Power Source
Model 1 220V, 50–60 Hz
Motor Power
Model 1 5.5 KW Servo Motor
Machine Size
Model 1 74 × 74 × 150 cm
Machine Weight
Model 1 480 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

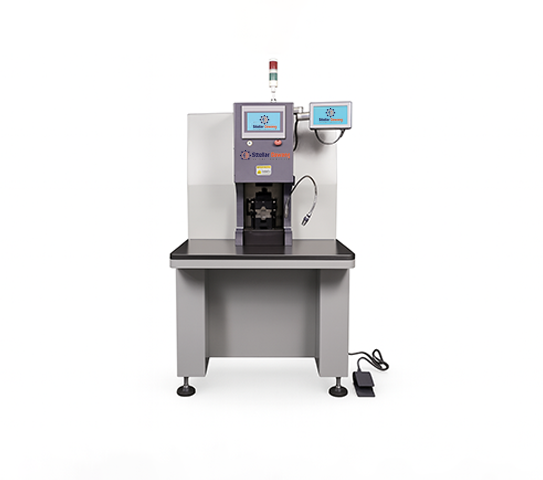

ServoCrimp-50000 Crimping Machines
