Crimping Machines

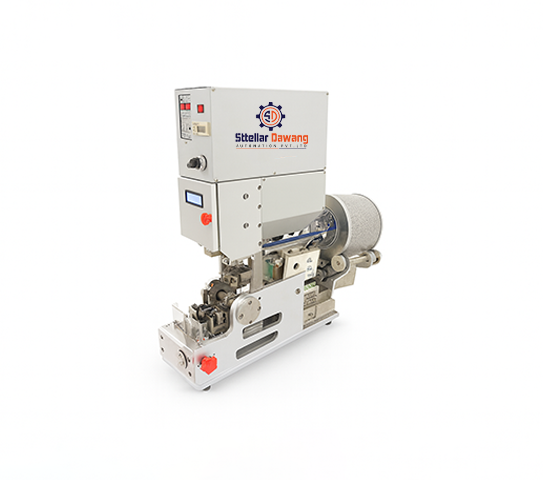

SealLoad-1000
SEMI-AUTOMATIC WIRE SUPERSEAL WATERPROOF LOADING MACHINE
Semi-automatic rubber superseal loader with auto feeding – operator only places the wire.Category: Processing Stations Tags: Ethernet cable, Terminal crimping machine, Wire seal
Semi-automatic superseal loader with PLC
Auto feeding
Sensors
Modular design for waterproof plugs
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SealLoad-1000
Wire Seal Size (Diameter × Length)
Model 1 ≤ φ16 × 15 mm (Max)
Stripping Length
Model 1 1–10 mm
Production Rate
Model 1 70 pcs/min
Air Supply
Model 1 0.5 – 0.7 MPa
Power Supply
Model 1 AC 220/110V, 50/60Hz
Power Rating
Model 1 80 W
Dimensions
Model 1 L600 × W600 × H260 mm
Weight
Model 1 35 kg
Notice
Model 1 Feeding rail must be customized for different wire seals.
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
