Crimping Machines
PowerCrimp-6000
6 TON CRIMPING MACHINE
Semi-automatic, foot-operated machine for crimping reeled terminals. Microprocessor-controlled, durable steel construction, low maintenance, and user-friendly soft-touch control panel.
Quiet operation
Quick-change applicator
Precision slow mode
Three-speed options
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 PowerCrimp-6000
Power Input
Model 1 Single Phase 220 V AC 50 Hz
Motor (kW)
Model 1 3 kW
Control
Model 1 Electronic
Tonnage (Ton)
Model 1 6 Ton
Terminal Sheet Thickness (mm)
Model 1 1.5 mm
Wire Size (Sq. mm)
Model 1 25 sq.mm
Stroke
Model 1 40 mm
Shut Height
Model 1 Std: 135.78 mm, Max: 190 mm
Weight (Kg)
Model 1 118 kg
Dimension (L × B × H)
Model 1 480 × 450 × 800 mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products
PowerCrimp-8000 Crimping Machines

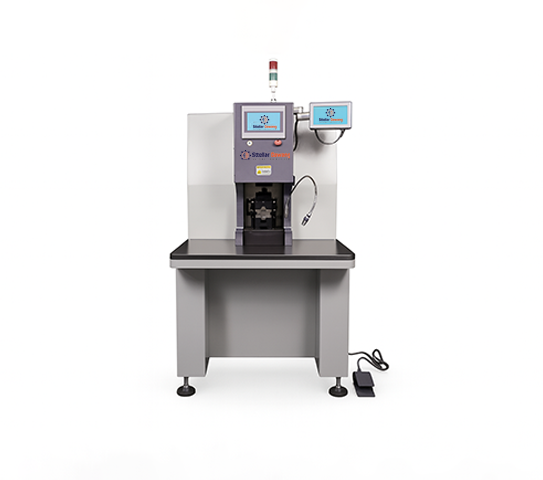

ServoCrimp-10000 Crimping Machines
