Crimping Machines
FlexCrimp-300

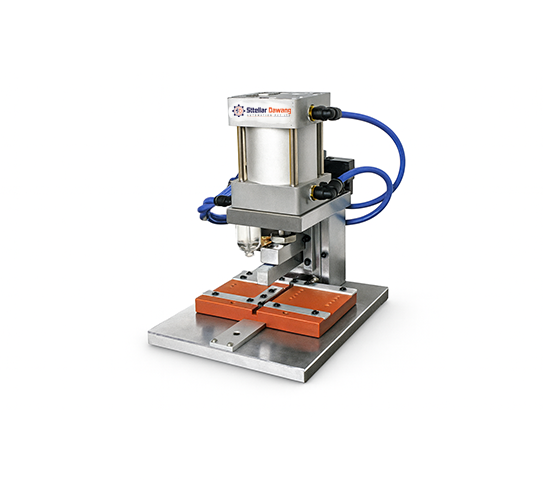

FRC CRIMPING MACHINE (FLAT RIBBON CABLE)
Semi Automatic IDC crimper – push-in operation with cylinder reset after crimping. High efficiancy pneumatic machine speialdesian for the flat ribbon cable with precision and reliable load powered by pneumatic cylender system.
High-efficiency pneumatic crimper with simple operation
300–600 cycles/hour
Durable steel body
Low Air pressure use and easy to maintenance
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 FlexCrimp-300
Crimp Pin
Model 1 4 – 120 pin
Function
Model 1 Pneumatic crimping
Air Connection
Model 1 0.6 – 0.8 MPa (6–8 bar)
Power Supply
Model 1 110/220VAC, 50/60Hz
Dimension
Model 1 250 × 280 × 300 mm
Weight
Model 1 16 kg
Wire Width
Model 1 120 mm
Cycle Time
Model 1 0.3 sec
Crimping Time Controller
Model 1 Timing Relay
Operation Model
Model 1 Integrated proxy trigger
Crimping Fixture
Model 1 Customized
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
