Crimping Machines
FerruCrimp-600
WIRE STRIPPING AND TWISTER AUTOMATIC PRE-INSULATED TUBULAR TERMINAL CRIMPING MACHINE ( 0.35 TO 6.00 MM )
Multifunctional Wire Processor – Automatically strips, twists, and crimps ferrules in one step. Handles multi-core cables and loose tubular terminals without die changes for fast, efficient processing.
Handles wire stripping, twisting, and crimping in one step (≈2.5 sec/wire)
Supports 0.5mm² – 6mm² tubular terminals
No need to change crimping dies for different sizes
LCD display for stripping depth and length adjustment
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 FerruCrimp-600
Function
Model 1 Wire stripping, twisting & ferrule crimping
Applicable Wire
Model 1 BVR wire: 0.5 / 0.75 / 1.0 / 1.5 / 2.5 / 4.0 / 6.0 mm²
Applicable Terminal
Model 1 Insulation ≤ 7.5 mm; conductor ≤ 10 mm
Stripping Length
Model 1 Max. 12 mm (wire must extend ≥35 mm into machine)
Production Rate
Model 1 2.5 seconds per wire
Air Supply
Model 1 5 – 7 Bar
Power
Model 1 AC 220V / 110V (optional)
Dimensions
Model 1 390 × 420 × 500 mm
Weight
Model 1 50 kg
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

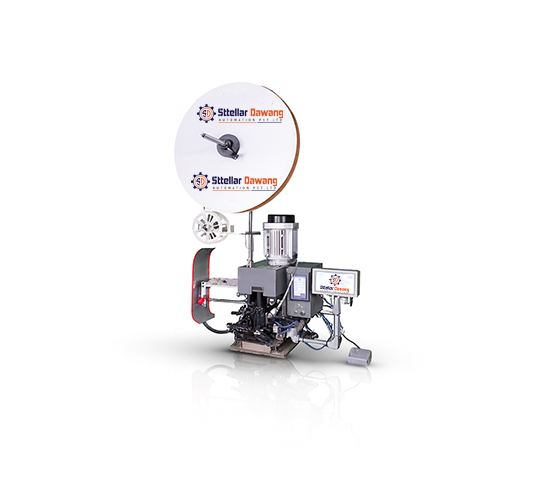

SealCrimp-2000 Crimping Machines
