Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Crimping Machines

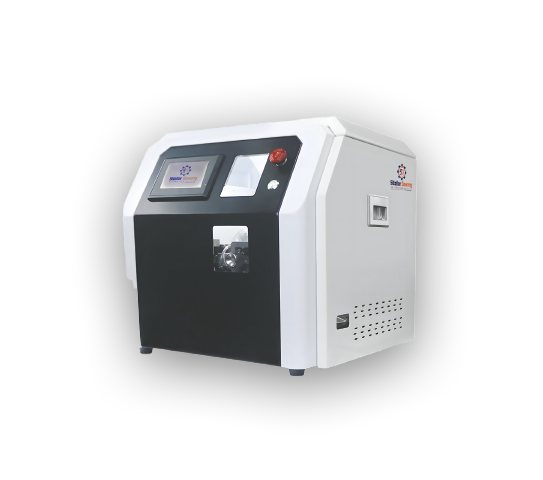

FeedCrimp-2000 RT
WIRE STRIPPING, TWISTING, AND AUTOMATIC RING TERMINAL CRIMPING
All-in-one machine for stripping, twisting, and ferrule crimping – ideal for multi-core cables.Categories Tags: Copper wire twisting, Ferrule, Multi-core & single-core wire, Stripping & crimping machine
High-speed stripping, twisting, crimping
Ferrule crimping machine (0.3–4mm²) – no die change needed
LCD control panel
Automatic feeding and four-side crimping for ideal production.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 FeedCrimp-2000 RT
Function
Model 1 Wire stripping, twisting, and ring terminal crimping
Available Wire
Model 1 BVR wire: 0.5, 0.75, 1.0, 1.5, 2.5, 4.0 mm²
Available Terminal
Model 1 Insulator length ≤ 7.5 mm, conductor length ≤ 10 mm
Stripping Length
Model 1 Max. 20 mm (requires >35 mm wire insertion)
Production Rate
Model 1 2.5 s/pcs
Air Supply
Model 1 0.6 – 0.8 MPa
Power
Model 1 AC 220V / 110V (optional)
Dimensions
Model 1 500 × 500 × 420 mm
Weight
Model 1 50 kg
Crimping Method
Model 1 Four Point Crimping
Production Off
Model 1 1000–1300 pcs/h
Crimping Drive
Model 1 Servo Motor
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
