Crimping Machines
FeedCrimp-2000 PI

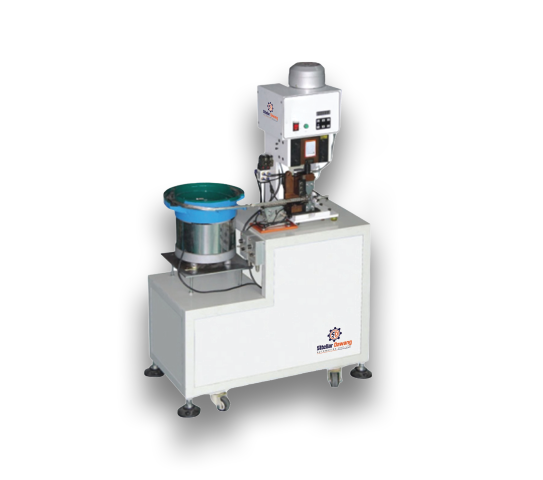

AUTOMATIC FEEDING LOOSE BULK PRE-INSULATED TERMINAL CRIMPING MACHINE
Loose-terminal crimpers with vibration plate auto-feeding (60–70 pcs/min, 1000–1500 pcs/hr); crimping force 2T.
High-speed loose terminal crimper with integrated mold
Low noise
Minimal wear
Cost-saving alternative to chain terminals; supports 800# & 2000# applicators.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 FeedCrimp-2000 PI
Crimp Force
Model 1 2 Ton
Function
Model 1 Automatic feeding of loose pre-insulated terminals and crimping
Stroke
Model 1 30 / 40 mm (custom available)
Power Supply
Model 1 110/220VAC, 50/60Hz
Power
Model 1 770 watts
Weight
Model 1 150 kg
Dimensions
Model 1 450 × 1400 × 750 mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
