Crimp Load Tester

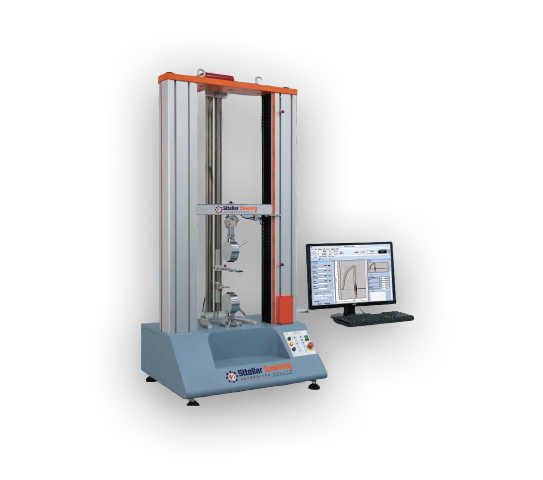

Crimp Load Master-2000
CRIMP LOAD MANAGE FOR UP TO 2000 KGF FORCE RANGE
Motorized Pull Tester – 2000 Kgf is a heavy-duty system for testing large cables, terminals, and connectors, offering PLC control, 7 HMI, and precise peak load measurement for industrial QA.
Massive Load Capacity: Supports pull testing up to 2000 kgf with 10 g resolution.
Advanced Control Interface: PLC with HMI touchscreen for seamless operation.
Variable Pull Speed: Adjustable from 10 mm/min to 300 mm/min for different test requirements.
Powerful Electric Drive: Ensures smooth and stable high-load pulling performance.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 Crimp Load Master-2000
Maximum Capacity
Model 1 2000 kgf
Resolution
Model 1 10 grams
Accuracy
Model 1 ±0.5%
Operating Interface
Model 1 PLC with 7-inch HMI touchscreen
Pull-Off Speed
Model 1 Variable, 10–300 mm/min
Drive
Model 1 Servo Electric drive
Operation Mode
Model 1 Peak mode (kgf / Newton)
Memory
Model 1 Up to 1000 recipes
Power Consumption
Model 1 1.8 kW
Power Supply
Model 1 440 V, 50/60 Hz
Dimensions (L × W × H)
Model 1 600 × 600 × 1300 mm (23.62 × 23.62 × 51.18 in)
Net Weight
Model 1 250 kg (550.92 lbs)
Least Count
Model 1 10 grams
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

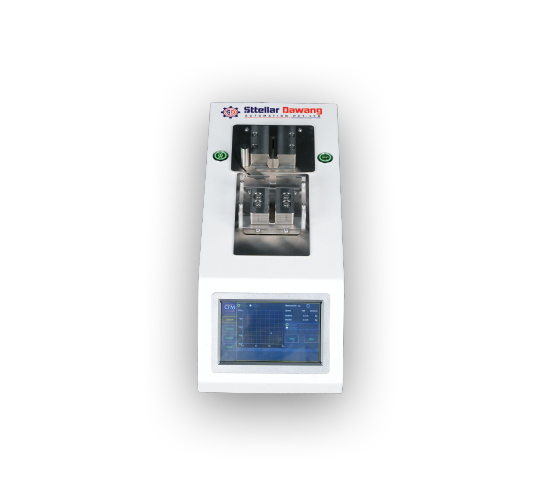

Crimp Load Master-100 Crimp Load Tester

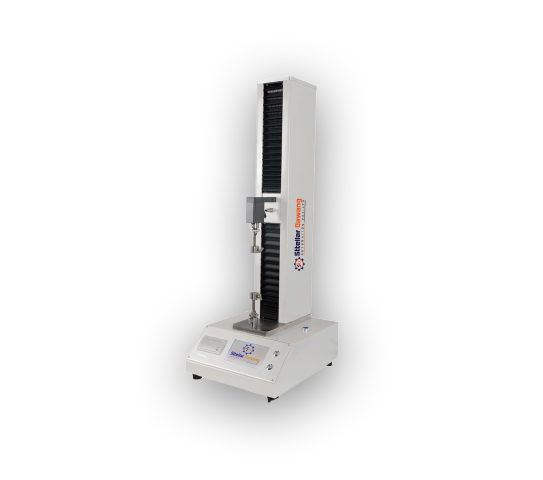

Crimp Load Master-300 Crimp Load Tester
