Crimp Cross Section Analysis Labs

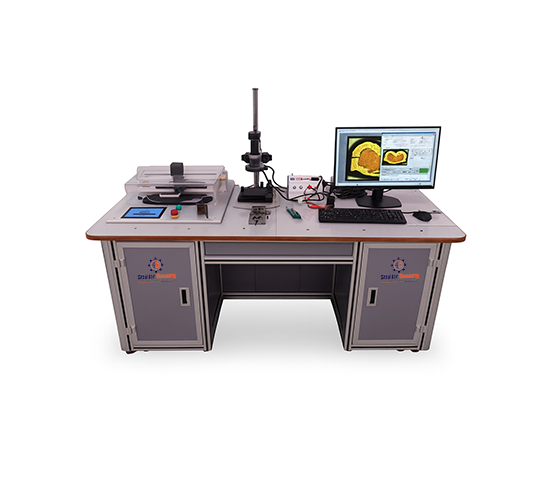

CrimpView-70M
CRIMP CROSS-SECTION ANALYSIS LABS WITH MANUAL GRINDING AND POLISHING TERMINAL UNIT ( 0.15 SQ.MM TO 70 SQ.MM)
The Crimp Cross-Section Analyzer is a precision instrument designed for detailed inspection and analysis of wire crimping quality. It is equipped with advanced optical and imaging features, enabling accurate cross-sectional evaluation of crimped connections.
Wide Wire Size Compatibility: Handles wire cross-sections from 0.15 sq.mm to 70 sq.mm.
High-Precision Optical System: Lens magnification range from 7x to 45x.
Digital Imaging: 2 MP high-resolution digital camera for clear and detailed images.
Adjustable Illumination: Integrated adjustable lighting system for optimal visibility
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 CrimpView-70M
Cross-Section Wire Size
Model 1 0.15 sq.mm to 70 sq.mm
Lens Magnification
Model 1 7x to 45x
Camera Resolution
Model 1 2 Megapixels
Illumination
Model 1 Adjustable illumination unit
Etching Process
Model 1 Chemical; 30 sec to 1 min / Electric etching (optional)
Crimp Standards Supported
Model 1 VW 60330, SAE/USCAR-21
Calibration
Model 1 Glass calibration scale
Dimensions
Model 1 1840 × 640 × 1185 mm
Weight
Model 1 126 kg (Including Table)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
