Crimp Cross Section Analysis Labs

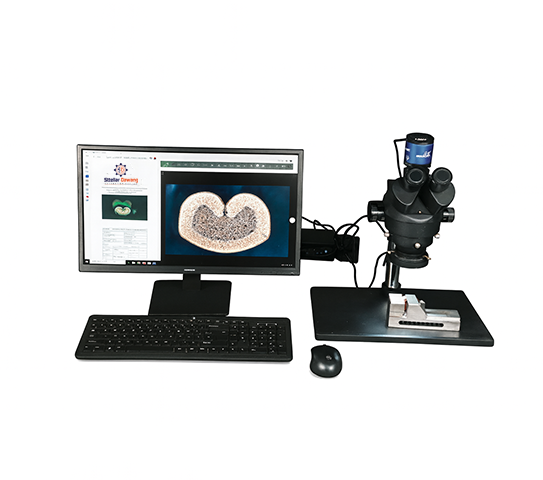

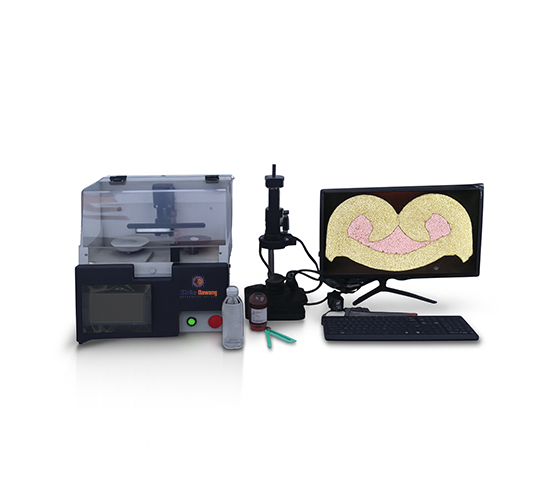

CrimpView-25M
CRIMP CROSS-SECTION ANALYSIS LABS WITH MANUAL GRINDINGAND POLISHING TERMINAL UNIT ( 0.15 SQ.MM TO 25 SQ.MM)
The Crimp Cross-Section Analyzer is designed for precise analysis of crimped wire terminals, ensuring compliance with global automotive and industrial standards. It combines semi-automatic features with a dedicated polishing unit, delivering accurate and repeatable cross-sectional evaluations. Ideal for quality assurance and process validation.
Wide Wire Size Range: Compatible with wire sizes from 0.15 sq.mm to 25 sq.mm.
High-Quality Optics: Lens magnification from 0.7x to 7.5x for detailed inspection.
Digital Imaging: Integrated 2 MP digital camera for clear image capture.
Adjustable Illumination: Ensures optimal visibility of cross-sectional details.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 CrimpView-25M
Cross-Section Wire Size
Model 1 0.15 sq.mm to 25 sq.mm
Lens Magnification
Model 1 0.7x to 7.5x
Camera Resolution
Model 1 2 Megapixels
Illumination
Model 1 Adjustable illumination unit
Software Compliance
Model 1 VW 60330, SAE/USCAR-21
Calibration
Model 1 Glass calibration scale
Cutting Unit & Polishing
Model 1 Inline manual cutting operation & polishing operation
Power Supply
Model 1 100–240 V AC
Dimensions
Model 1 L1840 × W640 × H1185 mm
Weight
Model 1 75 kg
Etching Process
Model 1 Manual chemical etching (30–60 sec) / Electric etching (optional)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

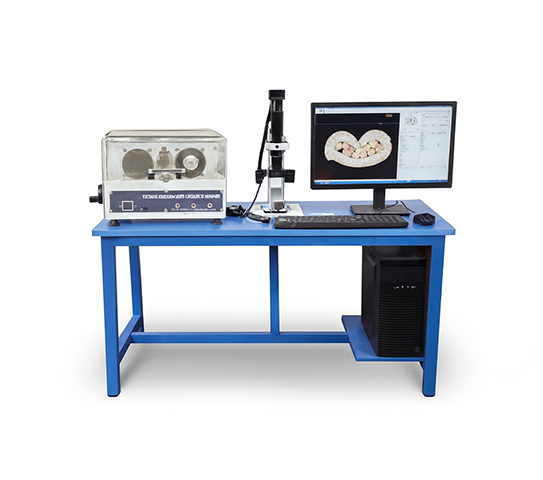

CrimpView-70M Crimp Cross-Section Analysis Labs

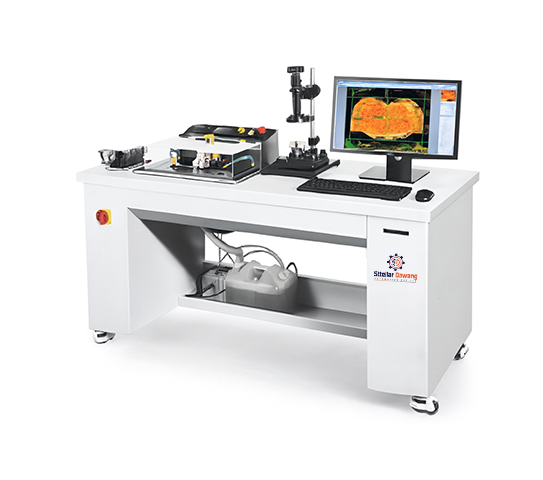

CrimpView-180M-400M Crimp Cross-Section Analysis Labs
