Coaxial Cable Stripping Machines

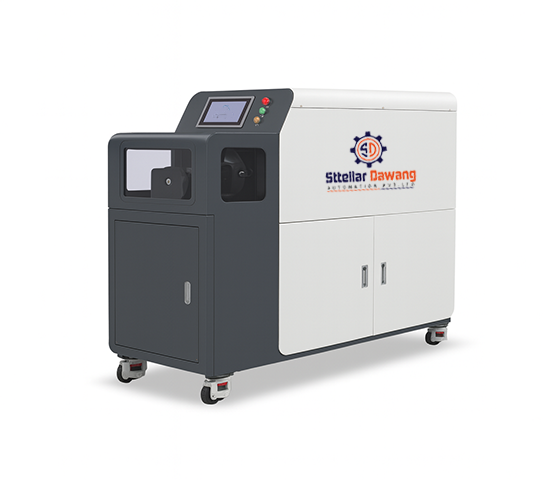

CoaxStrip-2520

COAXIAL STRIPPING FOR MEDIUM TO LARGE CABLES( CABLE OUTER DIA 5 MM TO 25.0 MM, STRIPPING LENGTH 5 MM TO 200.0 MM )

COAXIAL STRIPPING FOR MEDIUM TO LARGE CABLES( CABLE OUTER DIA 5 MM TO 25.0 MM, STRIPPING LENGTH 5 MM TO 200.0 MM )

Touchscreen-operated for multi-layer stripping and cutting of flexible coaxial cables, wires, cables, tubes, and various PVC, rubber, Teflon, and nylon materials RF cable.

Durable design.
Multi-material guides.
Easy programming.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Durable

Built for industrial operation.

Multi-Material

Supports various cable types.

Easy Programming

Simple touchscreen setup.

Consistent Output

Stable clamping for accuracy.

Technical Specifications

Specifications	Details
Model	CoaxStrip-2520
Operating Interface	HMI (Touch Screen)
Wire Type	Coaxial Cable
Minimum Cable Outer Diameter	5 mm
Maximum Cable Outer Diameter	25 mm
Stripping Layers	Up to 9 Layers
Stripping Length	1 mm to 200 mm
Clamping	Motor driven with programmable clamping force
Length Accuracy	±0.2 mm (L × 0.04%) depends on the materials
Noise Level	< 70 dB
Air Supply	4.0 – 6.0 bar dried and filtered air
Power	1000 Watts
Power Supply	230 to 240V (50/60 Hz)
Function Mode	Foot Pedal, Push Button
Drive Mode	DC servo motor / TBI ball screw
Dimensions (L × W × H)	1000 × 225 × 400 mm
Net Weight	45 kgs
Output Range (approx)	700 – 1200 pcs/hour (depending on operator skill)

Model

Model 1 CoaxStrip-2520

Operating Interface

Model 1 HMI (Touch Screen)

Wire Type

Model 1 Coaxial Cable

Minimum Cable Outer Diameter

Model 1 5 mm

Maximum Cable Outer Diameter

Model 1 25 mm

Stripping Layers

Model 1 Up to 9 Layers

Stripping Length

Model 1 1 mm to 200 mm

Clamping

Model 1 Motor driven with programmable clamping force

Length Accuracy

Model 1 ±0.2 mm (L × 0.04%) depends on the materials

Noise Level

Model 1 < 70 dB

Air Supply

Model 1 4.0 – 6.0 bar dried and filtered air

Power

Model 1 1000 Watts

Power Supply

Model 1 230 to 240V (50/60 Hz)

Function Mode

Model 1 Foot Pedal, Push Button

Drive Mode

Model 1 DC servo motor / TBI ball screw

Dimensions (L × W × H)

Model 1 1000 × 225 × 400 mm

Net Weight

Model 1 45 kgs

Output Range (approx)

Model 1 700 – 1200 pcs/hour (depending on operator skill)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.

CoaxStrip-2520 Coaxial Cable Stripping Machines
