Multi-Layer Precision
Strips up to 9 layers accurately.
Coaxial Cable Stripping Machines

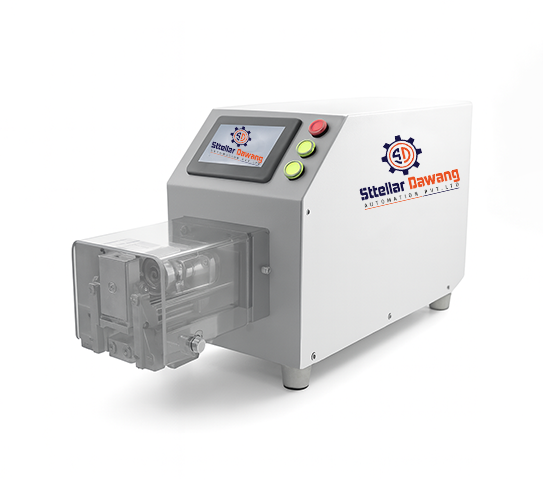

CoaxStrip-2010
COAXIAL STRIPPER FOR MULTI-LAYER CABLES (CABLE OUTER DIA 0.5 MM TO 20.0 MM, STRIPPING LENGTH 1.0 MM TO 100.0 MM )
Touchscreen-operated machine for multi-layer stripping of flexible coaxial cables. Suitable for medical, communication, and charging wires, with programmable clamping force.
Precise multi-layer stripping (up to 9 layers) for coaxial.
Touchscreen control.
Medical, and charging cables.
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Touchscreen Control
Simple and fast parameter setup.
Wide Cable Support
Ideal for coaxial, medical, and charging cables.
Stable Clamping
Motor-driven gripping for consistent performance.
Technical Specifications
Model
Model 1 CoaxStrip-2010
Operating Interface
Model 1 HMI (Touch Screen)
Wire Type
Model 1 Coaxial Cable
Minimum Cable Outer Diameter
Model 1 0.5 mm
Maximum Cable Outer Diameter
Model 1 20 mm
Stripping Layers
Model 1 Up to 9 Layers
Stripping Length
Model 1 1.0 mm to 100.0 mm
Clamping
Model 1 Motor driven with programmable clamping force
Length Accuracy
Model 1 ±0.2 mm (L × 0.04%) depends on materials
Noise Level
Model 1 < 70 dB
Air Supply
Model 1 4.0 – 6.0 bar dried and filtered air
Power
Model 1 600 Watts
Power Supply
Model 1 230 to 240V (50/60 Hz)
Function Mode
Model 1 Foot Pedal, Sensor, Push Button
Drive Mode
Model 1 DC servo motor / TBI ball screw
Dimensions (L × W × H)
Model 1 720 × 280 × 350 mm
Net Weight
Model 1 40 kgs
Output Range (approx)
Model 1 700 – 1200 pcs/hour (depending on operator skill)
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Get the full product details
You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
Related Products

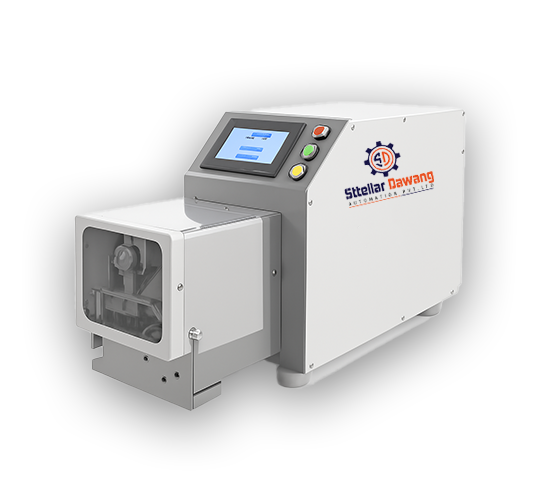

CoaxStrip-2320 Coaxial Cable Stripping Machines

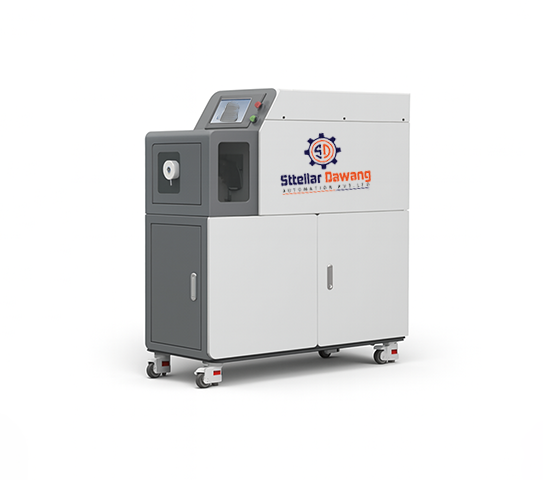

CoaxStrip-2520 Coaxial Cable Stripping Machines
