Coaxial Cable Stripping Machines

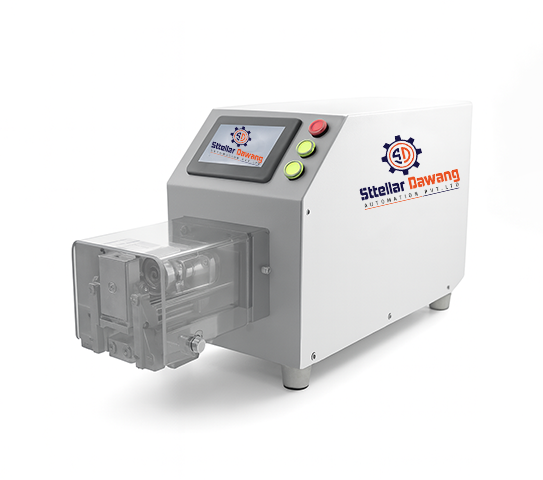

CoaxStrip-1890

COAXIAL STRIPPER FOR MULTI-LAYER CABLES ( CABLE OUTER DIA 0.5 MM TO 20.0 MM, STRIPPING LENGTH 1.0 MM TO 100.0 MM )

COAXIAL STRIPPER FOR MULTI-LAYER CABLES ( CABLE OUTER DIA 0.5 MM TO 20.0 MM, STRIPPING LENGTH 1.0 MM TO 100.0 MM )

Touchscreen-operated machine for multi-layer stripping of flexible coaxial cables. Suitable for medical, communication, and charging wires, with programmable clamping force.

Precise multi-layer stripping (up to 9 layers) for coaxial
Touchscreen control.
medical, and charging cables.

An Affordable Excellence Machine

This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.

Highlights Technical Specifications Processing Capabilities Downloads Related Products

Highlights

Multi-Layer Precision

Strips up to 9 layers accurately.

Touchscreen Control

Easy and quick parameter setup.

Wide Cable Support

Ideal for coaxial, medical, and charging cables.

Stable Clamping

Motor-controlled clamping for consistent results.

Technical Specifications

Specifications	Details
Model	CoaxStrip-1890
Operating Interface	HMI (Touch Screen)
Wire Type	Coaxial Cable
Minimum Cable Outer Diameter	0.5 mm
Maximum Cable Outer Diameter	18 mm
Stripping Layers	Up to 9 Layers
Stripping Length	1.0 mm to 90.0 mm
Clamping	Motor driven with programmable clamping force
Length Accuracy	±0.2 mm (L × 0.04%) depending on materials
Noise Level	< 70 dB
Air Supply	4.0 – 6.0 bar dried and filtered air
Power	600 Watts
Power Supply	230 to 240V (50/60 Hz)
Function Mode	Foot Pedal, Sensor, Push Button
Drive Mode	DC servo motor / TBI ball screw
Dimensions (L × W × H)	720 × 280 × 350 mm
Net Weight	40 kgs
Output Range (approx)	700 – 1200 pcs/hour (depending on operator skill)

Model

Model 1 CoaxStrip-1890

Operating Interface

Model 1 HMI (Touch Screen)

Wire Type

Model 1 Coaxial Cable

Minimum Cable Outer Diameter

Model 1 0.5 mm

Maximum Cable Outer Diameter

Model 1 18 mm

Stripping Layers

Model 1 Up to 9 Layers

Stripping Length

Model 1 1.0 mm to 90.0 mm

Clamping

Model 1 Motor driven with programmable clamping force

Length Accuracy

Model 1 ±0.2 mm (L × 0.04%) depending on materials

Noise Level

Model 1 < 70 dB

Air Supply

Model 1 4.0 – 6.0 bar dried and filtered air

Power

Model 1 600 Watts

Power Supply

Model 1 230 to 240V (50/60 Hz)

Function Mode

Model 1 Foot Pedal, Sensor, Push Button

Drive Mode

Model 1 DC servo motor / TBI ball screw

Dimensions (L × W × H)

Model 1 720 × 280 × 350 mm

Net Weight

Model 1 40 kgs

Output Range (approx)

Model 1 700 – 1200 pcs/hour (depending on operator skill)

Processing Capabilities

Cutting to length

Full stripping

Ferrule crimping

Cutting pulled strands / Zero cut

Partial stripping

Wire end solidifying, splicing, welding

Get the full product details

You can explore features, Specifications and benefits in our brochure. Our brochure provides insights into cutting-edge automation solutions designed to boost efficiency, precision, and performance.
