Applicators

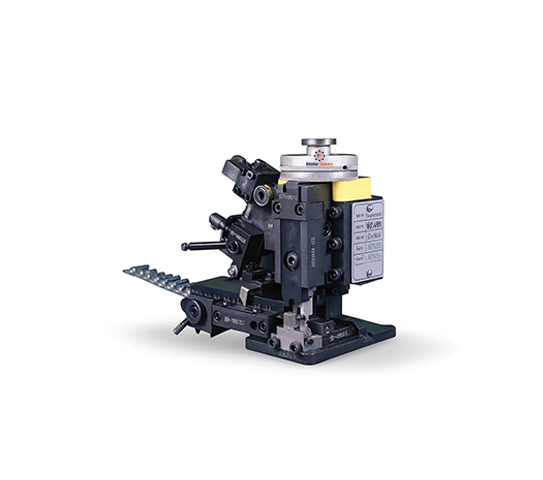

SpiraMax-S06
SIDE FEED SPIRAL DIAL TYPE APPLICATOR ( 0.1 TO 0.6 MM SHEET THICKNESS)
Side Feed Spiral Dial Applicators for semi-automatic as well Fully Automatic presses – high precision, 20µm crimp adjustment, quick load tuning, and durable performance.
Spiral Dial Applicators with 20µm crimp adjustment, anti-bending clenching
Quick-change base
Modular design
UNIVERSAL DESIGN
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SpiraMax-S06
Compatibility / Shut Height
Model 1 3-point Adaption / 135.78 mm
Minimum Load Increment
Model 1 20 microns
Stroke
Model 1 30 / 40 mm
Maximum Terminal Length
Model 1 40 mm
Maximum Terminal Sheet Thickness
Model 1 1.0 mm
Validation / Cross-Section Analysis
Model 1 Included
Maximum Terminal Pitch
Model 1 25 mm
Non-Resettable Counter
Model 1 Optional
Feed
Model 1 Mechanical
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
