Applicators

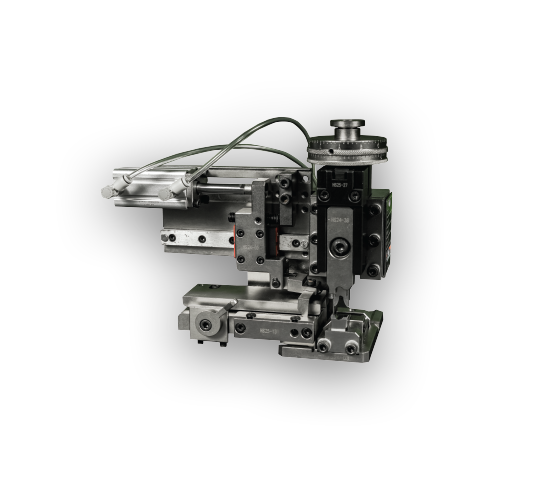

SpiraMax-PS06
SIDE FEED TERMINAL SPECIAL PNEUMATIC FEED APPLICATOR ( 0.1 TO 0.6 MM SHEET THICKNESS)
The SpiraMax-PS06 is a specialized Pneumatic Feed Applicator designed for side-feed terminals, equipped with a quick-change 3-point base that enables fast setup and highly efficient production. Its modular construction and split-type tooling ensure easy maintenance, reduced downtime, and consistent crimping performance.
Pneumatic Feed Applicators with 3-point quick-change base
Modular design
Split-type tooling
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 SpiraMax-PS06
Compatibility / Shut Height
Model 1 3-point Adaption / 135.78 mm
Minimum Load Increment
Model 1 20 microns
Stroke
Model 1 40 mm
Maximum Terminal Length
Model 1 40 mm
Maximum Terminal Sheet Thickness
Model 1 0.6 mm
Validation / Cross-Section Analysis
Model 1 Optional
Maximum Terminal Pitch
Model 1 30 mm
Non-Resettable Counter
Model 1 Optional
Feed
Model 1 Pneumatic
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

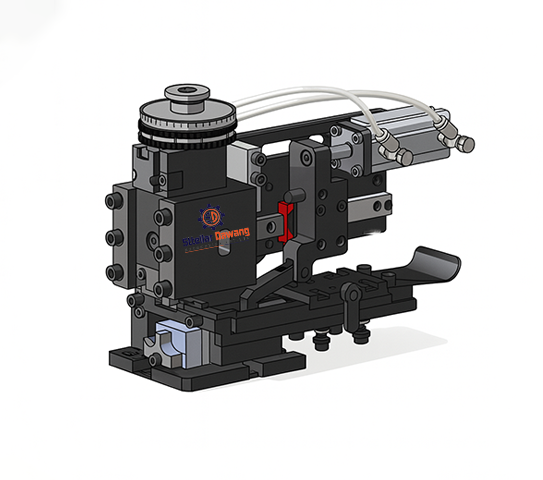

SpiraMax-PE06 Applicators
