Applicators

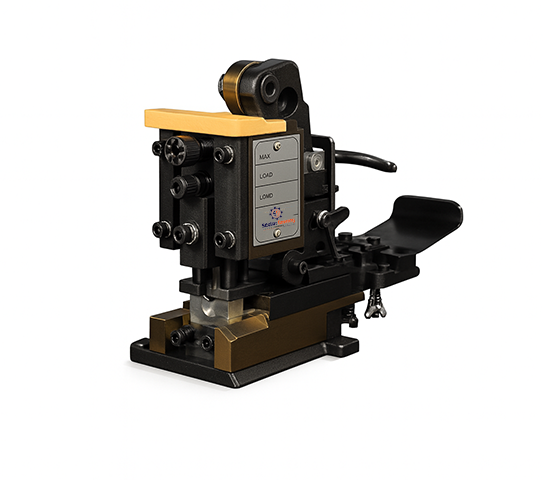

OTP-E06
END FEED OTP TYPE APPLICATOR ( 0.1 TO 0.6 MM SHEET THICKNESS)
Special Pneumatic Feed Applicators for side terminals with quick-change 3-point base for precise, efficient production.
Pneumatic Feed Applicators with 3-point quick-change base
Modular design
Split-type tooling
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 OTP-E06
Compatibility / Shut Height
Model 1 3-point Adaption / 135.78 mm
Minimum Load Increment
Model 1 20 microns
Stroke
Model 1 30 mm
Maximum Terminal Length
Model 1 35 mm
Maximum Terminal Sheet Thickness
Model 1 0.6 mm
Validation / Cross-Section Analysis
Model 1 Optional
Maximum Terminal Pitch
Model 1 25 mm
Non-Resettable Counter
Model 1 Optional
Feed
Model 1 Mechanical
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
Related Products

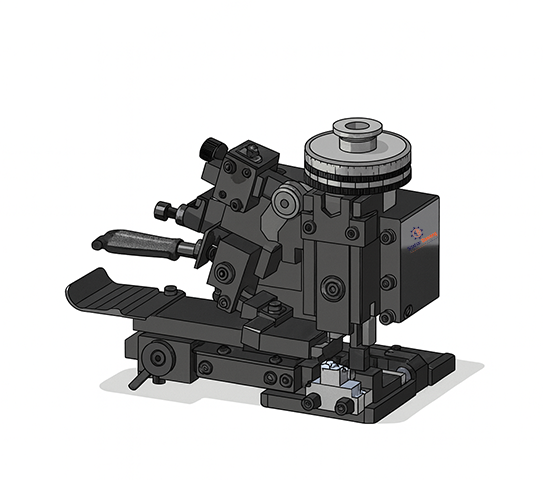

CrimpMax-PS30 Applicators

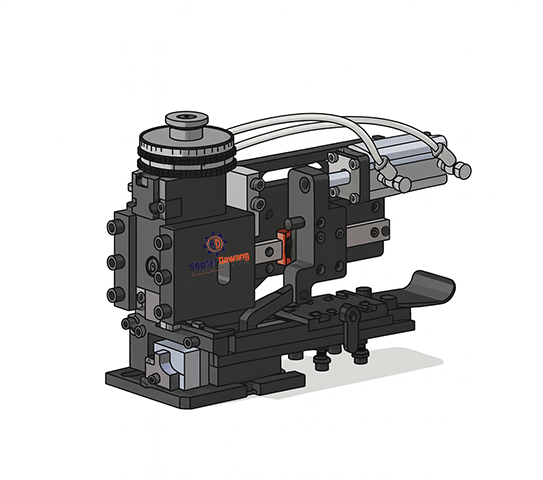

CrimpMax-ES30 Applicators
