CrimpMax-PS30

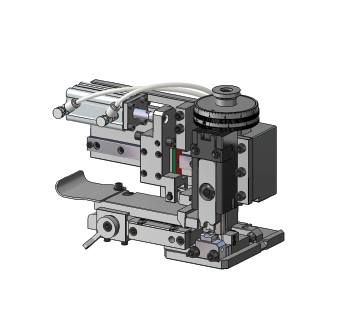

SIDE FEED EXTRA LARGE CHAIN TERMINALS APPLICATOR ( 0.1 TO 3.0 MM SHEET THICKNESS)
The CrimpMax-PS30 Pneumatic S/F Unit is a precision pneumatic crimping system designed for consistent and accurate terminal crimping. It supports a 190 mm shut height with a fine load increment of 20 microns for high-accuracy operation. The machine handles terminals up to 45 mm in length and 3.0 mm sheet thickness with stroke options of 30/40 mm.
Pneumatic Feed Applicators with 3-point quick-change base
Modular design
Split-type tooling
PNEUMATIC S/F
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Modular Design
Flexible configuration.
Split-Type Tooling
Easy tooling changes.
Pneumatic S/F
Efficient pneumatic operation.
Technical Specifications
Model
Model 1 CrimpMax-PS30
Compatibility / Shut Height
Model 1 190 mm
Minimum Load Increment
Model 1 20 microns
Stroke
Model 1 30 / 40 mm
Maximum Terminal Length
Model 1 45 mm
Maximum Terminal Sheet Thickness
Model 1 3.0 mm
Validation / Cross-Section Analysis
Model 1 Optional
Maximum Terminal Pitch
Model 1 40 mm
Non-Resettable Counter
Model 1 Optional
Feed
Model 1 Pneumatic
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
