Hex Small Applicators
For 180mm semi-automatic presses, modular for closed-barrel terminals.
Applicators
CrimpHex- Mini

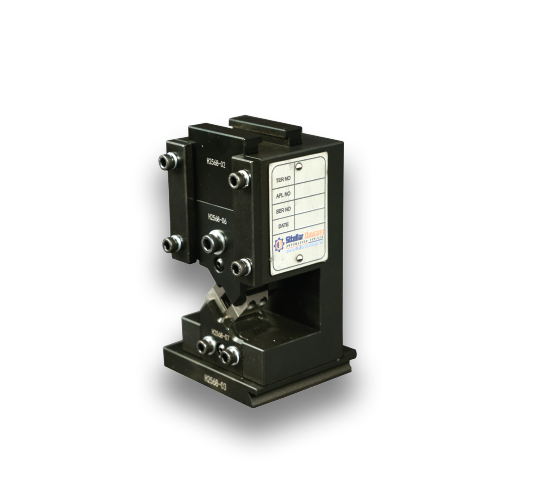

HEX SMALL APPLICATOR ( 0.1 TO 2 MM SHEET THICKNESS)
Hex Small Applicators for semi-automatic presses (180mm shut height) – flexible for multiple closed-barrel terminals with easy Stopper Assembly change.
Hex Small Applicators for 180mm semi-automatic presses – modular for closed-barrel terminals
Supports up to 2mm thickness
Durable
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Material Support
Handles terminals up to 2mm thickness.
Durable Design
Built for long-lasting performance.
Modular Configuration
Flexible setup for different applications.
Technical Specifications
Model
Model 1 CrimpHex-Mini
Compatibility/Shut height
Model 1 135.8 mm
Minimum Load Increment
Model 1 20 Microns
Stroke
Model 1 40 mm
Maximum Terminal Length
Model 1 50 mm
Maximum Terminal Sheet Thickness
Model 1 2 mm
Validation/Cross Section Analysis
Model 1 Optional
Maximum Terminal Pitch
Model 1 NA
Non-Resettable Counter
Model 1 NA
Feed
Model 1 Loose
Wire Range
Model 1 0.5–10 sq. mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
