Applicators

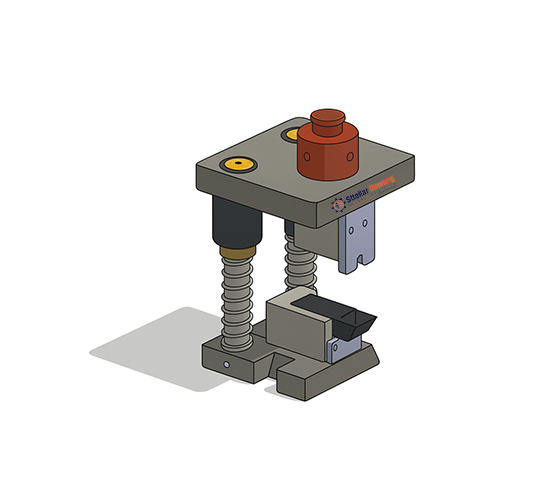

CrimpHex-Large
HEX LARGE APPLICATOR ( 0.1 TO 4 MM SHEET THICKNESS)
Hex Large Applicators for 212mm semi-automatic presses – flexible for various loose terminals with easy Stopper Assembly change.
Hex Large Applicators for 212mm semi-automatic presses – modular for loose terminals up to 4mm
Quick changeover
Durable performance
An Affordable Excellence Machine
This standard crimp machine is designed for crimping terminals using quick change applicators and for using both at the same time, in one single operation.
Highlights
Technical Specifications
Model
Model 1 CrimpHex-Large
Operating Interface
Model 1 HMI (Touch Screen)
Compatibility / Shut Height
Model 1 212 mm
Minimum Load Increment
Model 1 Manual Adjustment
Stroke
Model 1 4 mm
Maximum Terminal Length
Model 1 100 mm
Maximum Terminal Sheet Thickness
Model 1 4 mm
Validation / Cross-Section Analysis
Model 1 Optional
Maximum Terminal Pitch
Model 1 N/A
Non-Resettable Counter
Model 1 N/A
Feed
Model 1 Loose
Wire Range
Model 1 70–240 sq.mm
Processing Capabilities
Cutting to length
Full stripping
Ferrule crimping
Cutting pulled strands / Zero cut
Partial stripping
Wire end solidifying, splicing, welding
